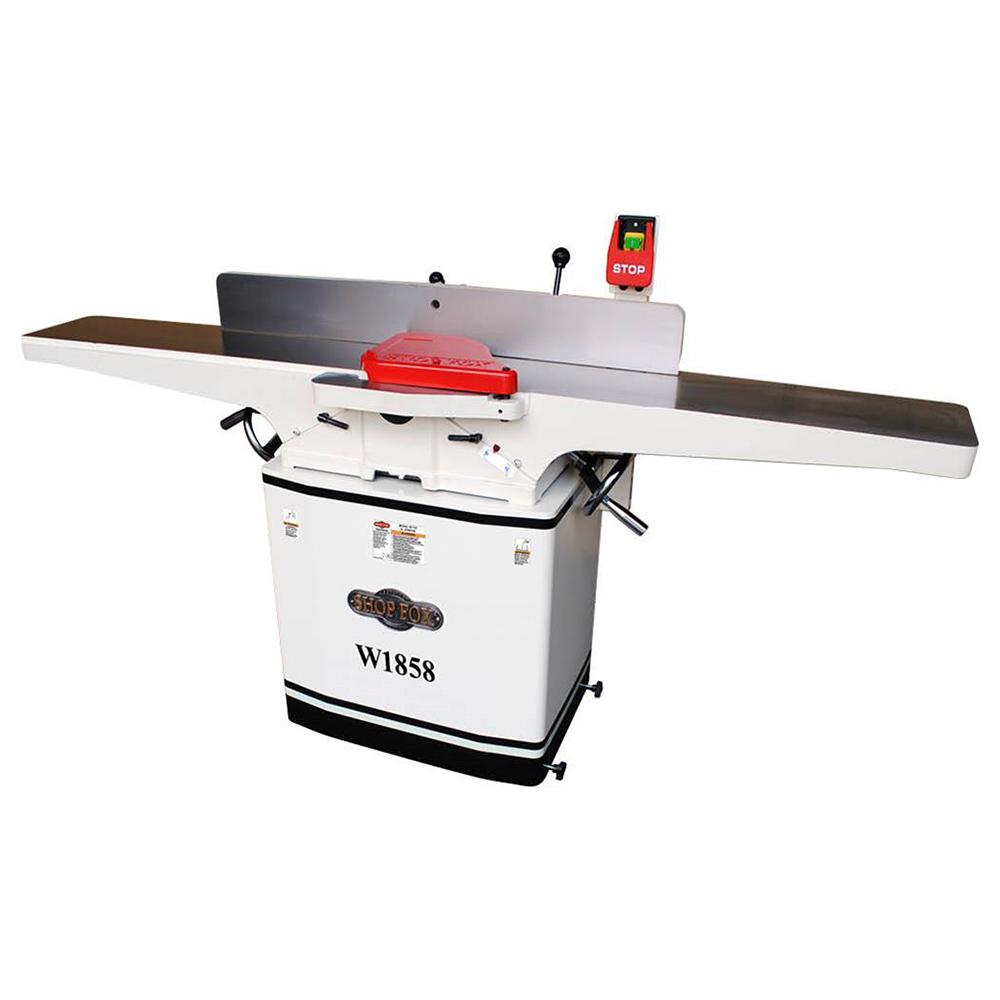

SHOP FOX W1858 8 Inch x 72 Inch Mobile Spiral Cutterhead Dovetail Jointer

by Shop Fox
$2,795.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325

Condition: New

SKU: W1858

Features
  • Beds Slide on Dovetailed Ways
  • Handwheel?Adjusted Tables with Depth Gauge
  • Pedestal?Mounted Power Switch for Easy Access
  • Center?Mounted Fence
  • 4 Dust Port with Built?In Dust Chute
  • Spiral Cutterhead with 36 Indexable Carbide Inserts
  • Precision?Ground Cast?Iron Tables
  • Sturdy Cabinet Stand with Built?In Mobile Base
  • Rabbeting Table
  • 72 Bed
  • Sealed and Permanently Lubricated Bearings
  • Powder?Coated Finish
What's in The Box
  • 8-Inch Dovetail Jointer w/ Helical Cutterhead
  • Mobile Base
  • (2) Push Blocks
  • (5) Replacement Indexable Carbide Inserts
  • Owner's Manual
Warranty
  • 2-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Sku W1858
Brand Shop Fox
Voltage 230V
Horsepower 3 Hp
Phase Single
Cutterhead Type Spiral
Cutterhead Diameter 3-1/16 in.
Number of Cutter Spirals 4
Number of Indexable Cutters 36
Cutterhead Speed 5,500 Rpm
Table Size 8 in. x 72 in.
Fence Size 4-5/8 in. x 38 in.
Max. Depth of Cut 1/8 in.
Rabbeting Capacity 1/2 in.
Power Transfer V-Belt drive
Fence System Positive Stops
Cutter Insert
(Length x Width)/(Thickness)		 15mm x 15mm / 2.5mm
Fence
(Length x Width x Height)		 38 in. x 1-1/4 in. x 4-5/8 in.
Footprint (Length x Width) 23-1/2 in. x 17 in.
Width (Side to Side) 72-1/2 in.
Depth (Front to Back) 25-1/2 in.
Height 42 in.
Product Weight 335 lbs.
