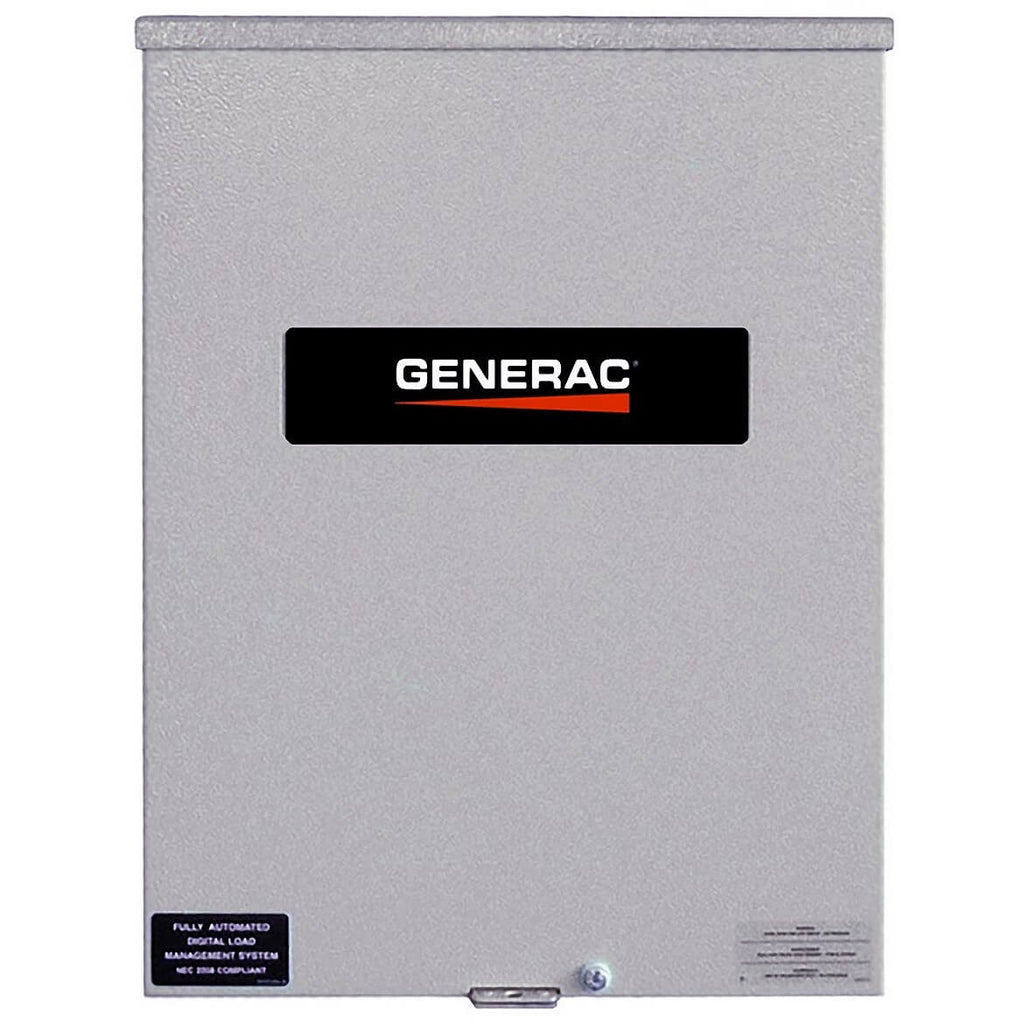

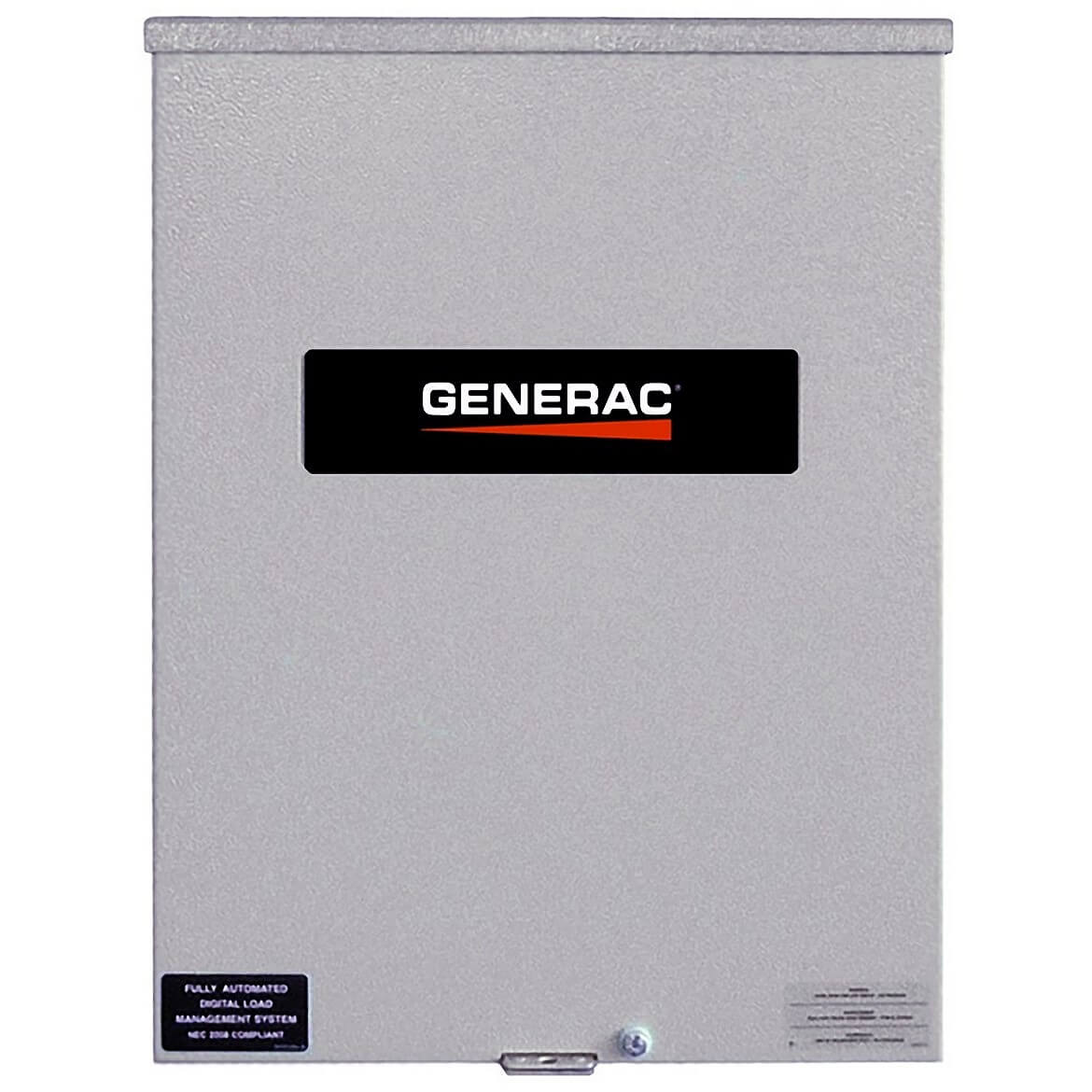

Generac RTSW400A3 120/240-volt 400-Amp Automatic Smart Transfer Switch

by Generac
$2,999.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325
Condition: New

SKU: GNC-RTSW400A3

Features
  • 400-Amp Automatic Smart Transfer Switch
  • For Generac Evolution and Generac Nexus
  • Digital Power Management Technology (DPM)
  • Allows your generator to work smarter, not harder
  • Be Smart....Get More Out Of Your Generator
  • Cycles power on and off as needed for different appliances
  • Manage Up To (4) Individual HVAC Loads - No Hardware Rec'd
  • Air conditioners, water heaters, well pumps, etc. (24 VAC controlled)
  • Up To (8) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads and lock-out non-essential loads
  • Service Entrance Rated (Load Side and Line Side Disc. Breakers)
  • Installs between main meter and service panel
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder coating paint (Gray)
  • Tech Spec Summary: Only For Use w/ Generac Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 22,000 Amps --- Lug Range: #4 or 2-250 MCM
What's in The Box
  • 120/240-volt 400-Amp Automatic Smart Transfer Switch - RTSW400A3
  • Owner's Manual
Warranty
  • 1-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Model RTSW400A3
Brand Generac
Maximum Wattage 96,000 Watts
Voltage 120/240 Single-Phase
Frequency 60 Hertz
Rated Amps 400 Amps
ATS Service Disconnect Yes
ATS Poles 2 Poles
ATS Load Shedding Built-In
ATS Load Prioritizing Built-In
Max Generator Input 400 Amps
Max Utility Input 400 Amps
Enclosure Outdoor NEMA 3R
Enclosure Material Aluminum
Lug Range #4 or 2 - 250 MCM
UL Listed Yes
Weight (lbs.) 140 (63.50 kgs)
Dimensions (LxWxH)(in.) 48 x 22 x 10 (121.92 x 55.88 x 25.40 cm)
